Kafka is often introduced as a simple key/value log. However, in modern data pipelines, this description overlooks one of its most powerful features: headers. Kafka headers allow developers to attach metadata to each record without touching the message key or payload.

Without headers, teams often overload payloads or keys with information that doesn’t belong there — correlation IDs crammed into JSON fields, schema version tucked into keys, or tracing tokens buried into message bodies. This practice makes systems brittle. Downstream services must parse inconsistent formats, observability becomes harder, and metadata oversight becomes nearly impossible.

Headers solve this problem by providing a structured, lightweight way to attach metadata directly to Kafka records. They enable correlation IDs, schema versioning, observability tags, and routing hints — all without bloating payloads or forcing developers into workarounds.

And while Kafka provides the mechanics, Superstream plays a critical role: enforcing metadata governance across headers, ensuring the reliable use of correlation IDs, schema versions, and tracing tokens across distributed pipelines.

In the sections that follow, we’ll explain what Kafka headers are, show code examples in Java and Spring Boot, review default headers, and share best practices for using headers effectively in modern pipelines.

What are KafKa Headers?

Kafka headers are optional metadata stored as key/value pairs on every Kafka record. Unlike message keys or payloads, headers are not part of the business data itself — they are attached alongside the record, providing lightweight context that can be read by consumers without parsing the message body.

Each header is a simple string key and a binary value, making them flexible enough to carry identifiers for tracing, markers for schema evolution, or lightweight routing signals. Because they travel with the record, headers ensure this metadata remains uniform across producers, brokers, and consumers.

The purpose of headers is to simplify and standardize metadata handling in distributed systems. Instead of overloading payloads with ad hoc fields, developers can use headers to carry metadata in a predictable and reliable way. This improves observability, reduces downstream parsing complexity, and makes pipelines easier to govern.

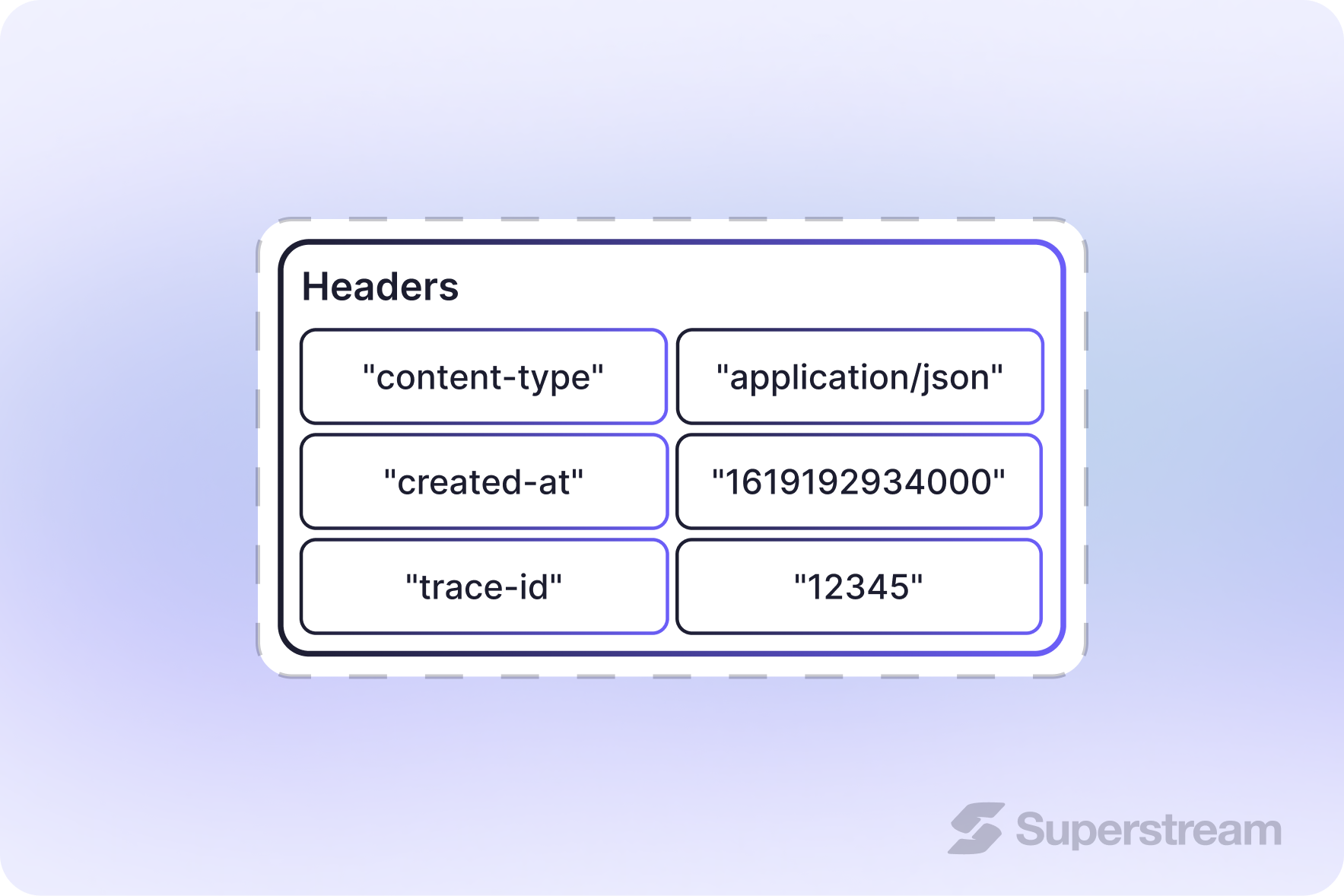

Examples of Kafka Headers

Kafka provides both default headers (attached automatically by Kafka or associated frameworks) and custom headers (defined by developers). Together, they give teams a powerful way to manage metadata across pipelines.

Default headers in Kafka

In addition to the custom headers you can define, Kafka and frameworks like Spring Kafka automatically attach certain headers and metadata to each record. These defaults provide context useful for debugging, routing, or schema management, including:

• Timestamp: Every Kafka record carries a timestamp (producer time or broker append time). This underpins event-time processing, log compaction, and retention policies.
• Partition/offset: Although technically not headers, this metadata identifies a record’s unique position within a topic and is crucial for replay, ordering, and recovery.
• __TypeId__ (Spring Kafka): When Spring serializes a Java object, it adds this header to mark the payload type, simplifying deserialization.
• Other framework-added fields: Depending on the serialization format, some frameworks enrich records with IDs or content-type hints.

These defaults are often worth preserving, since they provide consistent and unambiguous information. However, there are cases where you may want to override or supplement them. A common example is distinguishing between the logical event creation time and Kafka’s append time, or replacing framework-specific headers, such as __TypeId__, with your own standardized schema version headers. In multi-team environments, these choices must be consistently made; otherwise, defaults become a source of metadata drift.

This is where metadata governance platforms like Superstream add value: ensuring that defaults are either preserved or overridden according to policy, rather than left to ad hoc team decisions.

Custom headers in Kafka

While Kafka’s default headers provide useful metadata out of the box, most real-world systems also rely on custom headers. Beyond timestamps or type markers, developers often attach values such as correlation ID, tenant identifiers, or schema references to make records easier to trace and evolve.

Let’s examine how to implement custom headers, starting with the producer side.

1.  Producer — adding headers

A producer can attach headers to each record before sending it to a topic.

java

ProducerRecord<String, String> record =
    new ProducerRecord<>("orders", "order-123", "{...}");

record.headers()
      .add("correlation-id", "f6b9a2d4".getBytes())
      .add("schema-version", "v3".getBytes());

producer.send(record);

This code snippet describes how:

• Headers are key/value pairs attached alongside the payload.
• The producer doesn’t need to modify the payload or key to carry metadata like a correlation ID or schema version.
• This keeps business data clean while still passing critical metadata downstream.

Once producers attach metadata through headers, consumers need a reliable way to read and apply it — whether for tracing, validation, or routing.

2. Consumer — reading headers

On the consumer side, headers can be retrieved alongside the payload.

java

String corrId = new String(
    record.headers().lastHeader("correlation-id").value()
);

This code snippet shows how:

• Consumers access headers directly via record.headers().
• Each value is stored as bytes, so consumers decode them (in this case, using UTF-8).
• Metadata such as correlation IDs or trace tokens can be logged, forwarded, or used in routing decisions.

Beyond simple retrieval, headers can also influence runtime behavior. One common use case is routing, where consumers make decisions based on metadata rather than inspecting payloads.

3. Using headers for routing decisions

Headers can also drive dynamic routing logic. Instead of parsing payloads, consumers can make routing decisions directly on metadata.

java

String region = new String(record.headers().lastHeader("region").value());
if ("eu".equals(region)) {
    // send to EU data processing pipeline
} else {
    // send to global pipeline
}

This code snippet highlights that:

• Routing logic can be simplified by adding hints (like region, priority, or tenant-id) into headers.
• This reduces parsing complexity and ensures decisions are based on standardized metadata, not inconsistent payload fields.

These examples show how headers streamline metadata handling in practice. But the real impact comes when headers are consistently applied across pipelines — that’s where governance ensures they remain reliable signals rather than ad hoc tags.

4. Why this matters for governance

Headers act as lightweight metadata channels. Instead of cramming schema versions or tracing tokens into JSON payloads, teams can use headers consistently across all messages. This reduces coupling, improves observability, and enables governance rules such as:

• Correlation IDs: Trace a transaction across multiple services.
• Schema versions: Safely evolve data without breaking consumers.
• Trace tokens (or tenant IDs): integrate Kafka with distributed tracing systems or multi-tenant policies.

By separating metadata from business payloads, headers make pipelines more resilient, more debuggable, and easier to govern at scale.

Kafka Headers in Spring Boot

If you are using Spring Boot with Spring for Apache Kafka (Spring Kafka), headers integrate naturally into the framework. You can add headers on the producer side using Spring’s Message API (or KafkaTemplate with a ProducerRecord), and access them in consumers via the @Header annotation or a MessageHeaders map.

Producer — adding headers with MessageBuilder

Spring’s messaging abstraction lets you attach headers without manually handling byte arrays:

java

import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.kafka.support.KafkaHeaders;

@Autowired
private KafkaTemplate<String, String> kafkaTemplate;

public void sendOrder() {
    String payload = "{\"id\":123,\"total\":42.00}";
    var message = MessageBuilder
        .withPayload(payload)
        .setHeader(KafkaHeaders.TOPIC, "orders")
        .setHeader("correlation-id", "f6b9a2d4")
        .setHeader("schema-version", "v3")
        .build();

    kafkaTemplate.send(message);
}

Why this helps:

• Spring handles header conversion and topic routing, reducing boilerplate while keeping metadata out of the payload.

Once producers attach metadata through headers, the next step is on the consumer side. Consumers need a reliable way to read and apply this metadata — whether for tracing, validation, or routing.

2. Consumer — reading headers with @Header

Spring Kafka injects header values directly into listener method arguments:

java

import org.springframework.kafka.annotation.KafkaListener;
import org.springframework.messaging.handler.annotation.Header;

@KafkaListener(topics = "orders", groupId = "orders-consumer")
public void onMessage(
        String value,
        @Header(name = "correlation-id", required = false) String corrId,
        @Header(name = "schema-version", required = false) String schemaVersion) {

    // Use headers for tracing, metrics, or routing
    // log.info("corrId={}, schema={}", corrId, schemaVersion);
}

Why this helps:

• You avoid manual decoding/parsing.
• Headers are available alongside the payload, ready for tracing, metrics, or conditional logic.

3. Alternative: Access all headers as a map

When you need to work with multiple headers or handle dynamic keys (where you don’t know all the header names ahead of time), you can inject the entire header set as a MessageHeaders map:

java

import org.springframework.messaging.MessageHeaders;

@KafkaListener(topics = "orders")
public void onMessage(String value, MessageHeaders headers) {
    String region = (String) headers.get("region");
    // route or enforce policy based on region/tenant/priority
}

Why this works:

• It’s useful for dynamic metadata (e.g., multi-tenant systems where tenants are identified in headers).
• Allows you to inspect all headers at once, which helps with logging, debugging, or applying policy checks (including verifying that required headers exist).
• Provides flexibility compared to @Header, which works best when you know the exact header names you want to capture.

Confluent Kafka Message Headers

When running Kafka on Confluent Platform or Confluent Cloud, headers take on additional roles in integration and governance. Confluent often uses headers to enrich records with schema and tracing metadata, which helps developers manage compatibility across evolving data contracts.

Common Confluent header use cases include:

• Avro schema versions: Confluent’s Schema Registry supports attaching schema IDs or versions as headers, making it easier for consumers to select the right schema without guessing or inferring.
• Tracking and correlation IDs: Headers are a natural place to store request or trace identifiers, allowing Confluent observability tools to link events across distributed systems.
• Data lineage and governance: By combining headers with Confluent’s metadata APIs, teams can surface lineage (which producers set which headers, and how those values change over time).

For example, attaching a schema version header:

java

record.headers()
      .add("schema-version", "avro-v5".getBytes());

Why this matters:

• With schema versions in headers, producers and consumers can evolve independently, as long as they adhere to the registered schema contracts.

While Confluent provides the mechanics for attaching schema versions and tracing metadata, it’s still up to teams to apply these headers consistently. Without clear governance, different services may treat headers differently, such as one header relying on schema IDs while another ignores them. Ensuring consistency across teams and clusters remains essential for long-term reliability.

Kafka Headers Best Practices

Kafka headers are powerful, but misused headers can create as much brittleness as overloaded payloads. Utilize the following best practices to maintain consistent, lightweight, and governable metadata across teams.

1. Keep headers for metadata, not business data: Use headers for context (correlation IDs, schema versions, tracing tokens, routing hints). Do not put critical business fields in headers; they belong in the payload where they are versioned, validated, and searchable.
2. Avoid oversized headers: Values are binary, but still count toward message size and network overhead. Keep headers small (short strings/IDs). If you need richer content, link to it (e.g., a reference ID) rather than embedding large JSON blobs.
3. Standardize header names: Adopt a single convention (e.g., lowercase, hyphenated keys like correlation-id, schema-version, tenant-id) and publish it. Uniform naming prevents drift and simplifies validation.
4. Version explicitly: Use a schema-version (or similar) header to signal payload evolution. This lets consumers branch logic or fail fast instead of inferring types from framework-specific headers (e.g., __TypeID__).
5. Strategically combine headers with message keys: Keys handle partitioning and ordering; headers carry context. Don’t overload keys with metadata that belongs in headers (for example, stuffing correlation IDs into keys). Instead, design the key for distribution semantics and put trace or correlation data in headers.
6. Validate required headers at the edge: Enforce the presence and format of required headers at producers or the first consumer hop. Fail clearly (log metrics, route to DLQ) when mandatory headers are missing or malformed. This prevents bad metadata from propagating further downstream.
7. Log and trace with headers: Propagate correlation IDs and trace tokens through logs and tracing systems. Include header values in structured logs to support end-to-end debugging and SLO tracking.
8. Document header contracts: Treat headers like an API: document required versus optional headers, formats, and allowed values. Keep these contracts alongside your schemas for easy reference.

Spring-focused tips (applies when using Spring Kafka)

Spring Kafka makes headers easier to work with, but that convenience can also lead to inconsistent usage unless teams apply clear governance rules:

1. Enforce naming conventions: Centralize header keys (constants) and lint usage across services to prevent naming convention drift, such as “corrid” versus “correlation-id.”
2. Validation: Use @Header(required = true) for must-have headers or interceptors/AOP to validate patterns (such as UUIDs) before business logic.
3. Error handling: On missing/malformed headers, implement explicit handling (reject or route to DLQ) rather than silent defaults.
4. Policy checks with MessageHeaders: When policies change, inject MessageHeaders to enforce cross-header rules (e.g., tenant-id and schema-version always appear together).

Governance & lineage

In larger estates, header usage can diverge quickly without oversight. Platforms like Superstream correlate message keys (used for partitioning and ordering) with headers (used for context), producing an auditable lineage view: which teams set which headers, how frequently, and where standards are drifting. This turns header conventions into measurable, enforceable policies across pipelines.

Conclusion

Kafka headers may seem like a small feature, but they are critical to building resilient, metadata-aware pipelines. By separating metadata from payloads, headers provide a consistent channel for correlation, schema evolution markers, routing signals, and observability tags — all without bloating business data or forcing developers into brittle workarounds.

We’ve seen how headers appear in default Kafka metadata, how developers can attach custom headers in Java, and how frameworks like Spring Boot and Confluent make them easier to use. The challenge isn’t whether headers work — it’s whether they’re applied consistently across services and treated as part of your data contracts.

Kafka gives you the mechanics. However, without proper oversight, header usage drifts: teams adopt inconsistent naming, validation rules are often unenforced, and traceability breaks down. That’s why best practices — from standardizing keys, to validating required headers, to linking keys with headers for lineage — are essential.

This is also where Superstream helps: transforming headers into enforceable, observable governance signals across pipelines. The result isn’t just cleaner metadata, but greater resilience, stronger traceability, and trust in the data that powers modern applications.

‍
